Panasonic Electronic Components

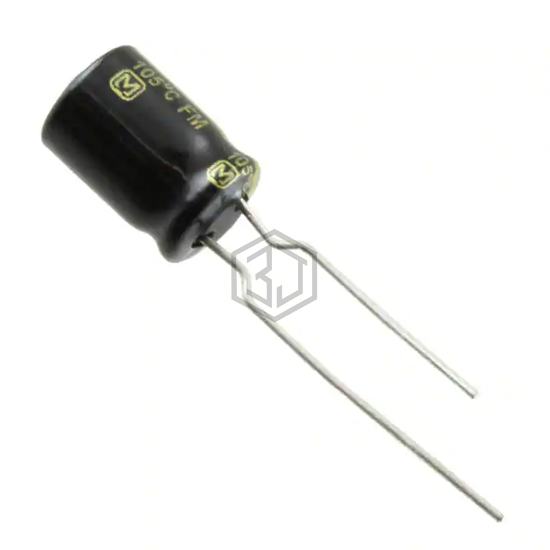

CAP ALUM 470UF 20% 10V RADIAL
EEU-FM1A471BJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,325
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 712.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | 56 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKY-160ELL471MJC5S | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 71% | View |
| MAL215038471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 71% | View |
| 35YXG470MEFCGA12.5X16 | Rubycon | CAP ALUM 470UF 20% 35V RADIAL | 69% | View |
| ELXV630ELL471MK35S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 65% | View |
| EKMQ350ELL471MJ16S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 61% | View |
| LP471M200E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 200V SNAP | 55% | View |
