CAP ALUM POLY 56UF 20% 35V T/H

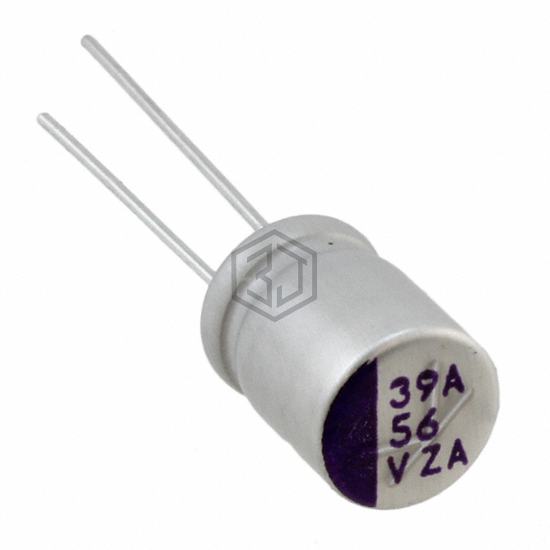

35PZA56M8X10 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY 56UF 20% 35V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,367
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 29mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
35PZA56M8X10 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLF1D560MCL2 | Nichicon | CAP ALUM POLY 56UF 20% 20V T/H | 69% | View |
| PLF1E560MDO2TD | Nichicon | CAP ALUM POLY 56UF 20% 25V T/H | 64% | View |
| 25SEP56M+T | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 25V T/H | 57% | View |
| 80SXE56M | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 80V T/H | 55% | View |
| RS61E560MCN1 | Nichicon | CAP ALUM POLY 56UF 20% 25V T/H | 55% | View |
| RNU1J560MDN1PH | Nichicon | CAP ALUM POLY 56UF 20% 63V T/H | 51% | View |
Submit your RFQ for 35PZA56M8X10 and get a quote within 24 hours.
