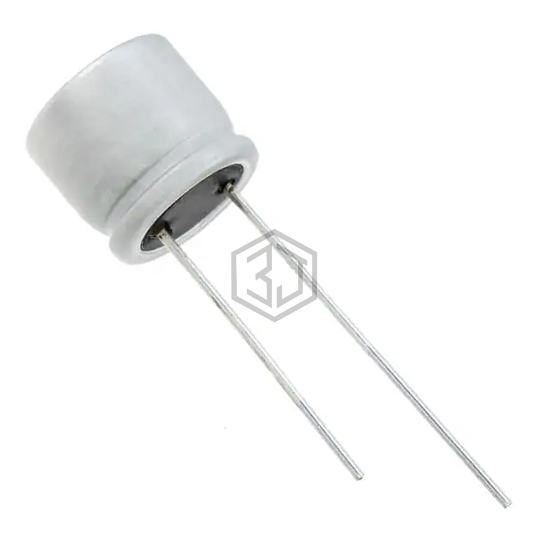

CAP ALUM POLY 56UF 20% 20V T/H
PLF1D560MCL2 is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 56UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 4,476
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
