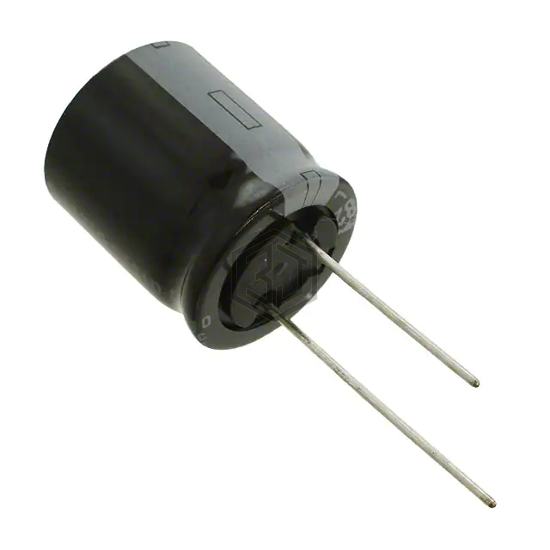

CAP ALUM 2200UF 20% 25V RADIAL
25YXH2200MEFCGC18X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,926
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.002 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.86 A @ 100 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UFG1E222MHM | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 100% | View |
| MAL229956182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 400V SNAP | 71% | View |
| 380LX182M100J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 100V SNAP | 71% | View |
| E32D501CDN182ME79U | United Chemi-Con | CAP ALUM 1800UF 20% 500V SCREW | 71% | View |
| 500LSU2700MNB64X139 | Rubycon | CAP ALUM 2700UF 20% 500V SCREW | 70% | View |
| 3186GN302T450AHA2 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3000UF 450V SCREW | 55% | View |
Submit your RFQ for 25YXH2200MEFCGC18X20 and get a quote within 24 hours.
