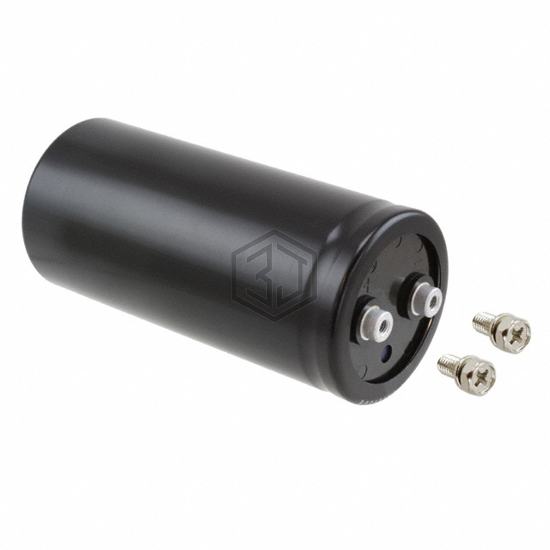

CAP ALUM 2700UF 20% 500V SCREW
500LSU2700MNB64X139 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2700UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,181
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 13.44 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.110" (28.20mm) |
| Size / Dimension | 2.520" Dia (64.00mm) |
| Height - Seated (Max) | 5.591" (142.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
500LSU2700MNB64X139 is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 3186GN302T450AHA2 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3000UF 450V SCREW | 85% | View |
| RZW332M1ABK-1325S | Surge | CAP ALUM 10V POLAR | 71% | View |
| UFG1E222MHM | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 70% | View |
| 25YXH2200MEFCGC18X20 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 70% | View |
