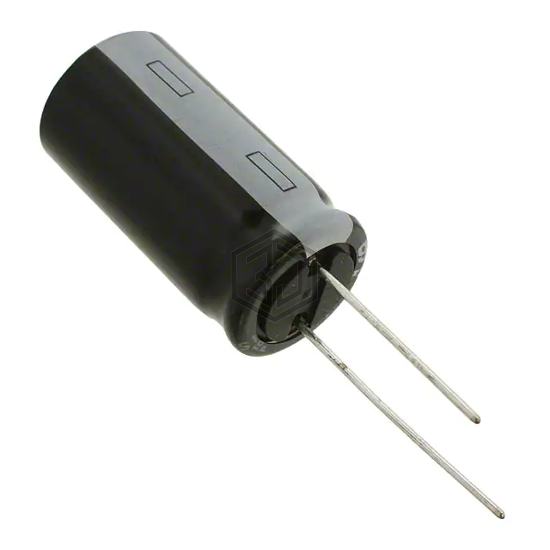

CAP ALUM 3300UF 20% 25V RADIAL
25YXG3300MEFC16X31.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,484
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.415 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 100 kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1E332MHD1TN | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 93% | View |
| EEU-FK1V332SB | Panasonic Electronic Components | CAP ALUM 3300UF 20% 35V RAD TH | 85% | View |
| EKZH160ETD332ML20S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 85% | View |
| MAL215050332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 85% | View |
| 16YXH3300MEFC12.5X35 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 79% | View |
| LGG2Z332MELC50 | Nichicon | CAP ALUM 3300UF 20% 180V SNAP | 66% | View |
