CAP ALUM 3300UF 20% 25V RADIAL

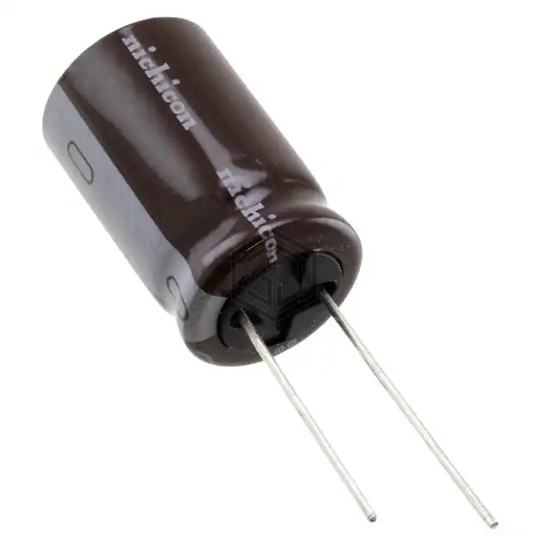

UPA1E332MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,592
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.346 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 100 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FK1V332SB | Panasonic Electronic Components | CAP ALUM 3300UF 20% 35V RAD TH | 89% | View |
| MAL215050332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 88% | View |
| MAL214660332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 85% | View |
| UPA1A332MHD | Nichicon | CAP ALUM 3300UF 20% 10V RADIAL | 72% | View |
| 338RZM016M1625 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 16V RADIAL | 54% | View |
| VPR332U040N3L | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 40V RADIAL | 53% | View |
Submit your RFQ for UPA1E332MHD1TN and get a quote within 24 hours.
