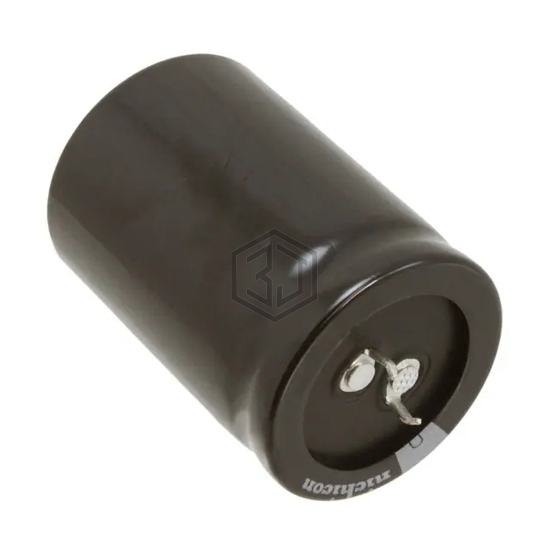

CAP ALUM 3300UF 20% 180V SNAP
LGG2Z332MELC50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 1,638
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.65 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXG3300MEFC16X31.5 | Rubycon | CAP ALUM 3300UF 20% 25V RADIAL | 66% | View |
| EKZH160ETD332ML20S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 65% | View |
| MAL215050332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 61% | View |
| EEU-FK1V332SB | Panasonic Electronic Components | CAP ALUM 3300UF 20% 35V RAD TH | 60% | View |
| UPA1E332MHD1TN | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 60% | View |
| B41605A338M2 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 55V SNAP | 58% | View |
Submit your RFQ for LGG2Z332MELC50 and get a quote within 24 hours.
