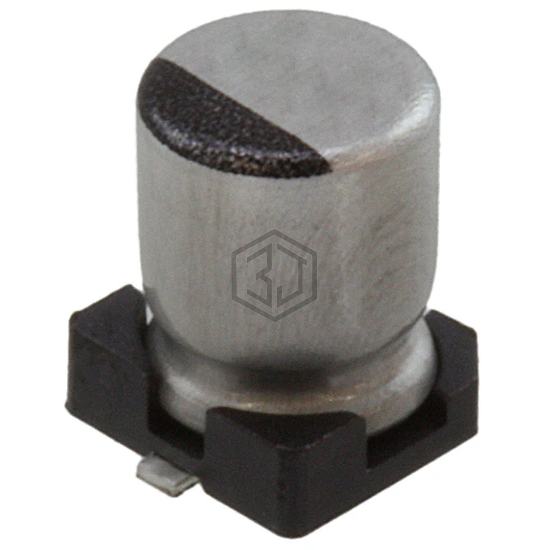

CAP ALUM 10UF 20% 25V SMD
25SEV10M4X5.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,333
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 37.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-HAE100WAR | Panasonic Electronic Components | CAP ALUM 10UF 20% 25V SMD | 97% | View |
| EDH106M025S9BAA | KEMET | CAP ALUM 10UF 20% 25V SMD | 96% | View |
| EMVE350ARA100ME55G | Chemi-Con | CAP ALUM 10UF 20% 35V SMD | 84% | View |
| 865090543004 | Würth Elektronik | CAP ALUM 10UF 20% 35V SMD | 83% | View |
| 50SKV10M6.3X5.5 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 74% | View |
| ULH2D100MNL1GS | Nichicon | CAP ALUM 10UF 20% 200V SMD | 52% | View |
Submit your RFQ for 25SEV10M4X5.5 and get a quote within 24 hours.
