Panasonic Electronic Components

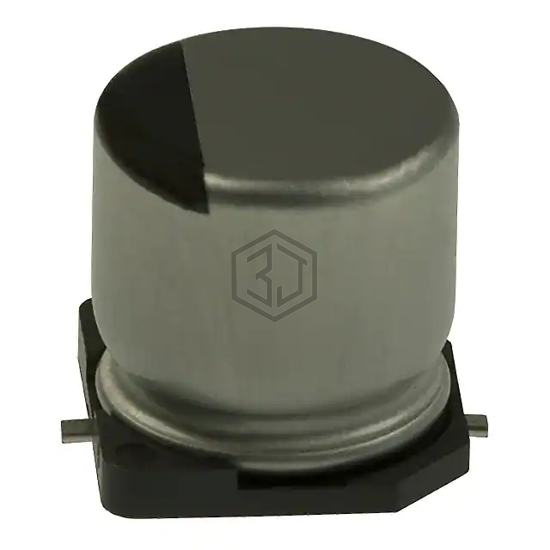

CAP ALUM 10UF 20% 25V SMD
EEE-HAE100WAR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 129,856
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 22 mA @ 120 Hz |
| Ripple Current @ High Frequency | 37.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UZG1E100MCL1GB | Nichicon | CAP ALUM 10UF 20% 25V SMD | 92% | View |
| BMVK350ADA100MF60G | United Chemi-Con | CAP ALUM 10UF 20% 35V SMD | 85% | View |
| EMVE350ARA100ME55G | Chemi-Con | CAP ALUM 10UF 20% 35V SMD | 79% | View |
| 50SKV10M6.3X5.5 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 70% | View |
| 50SLV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 59% | View |
| EEE-FN1H100UR | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 54% | View |
Submit your RFQ for EEE-HAE100WAR and get a quote within 24 hours.
