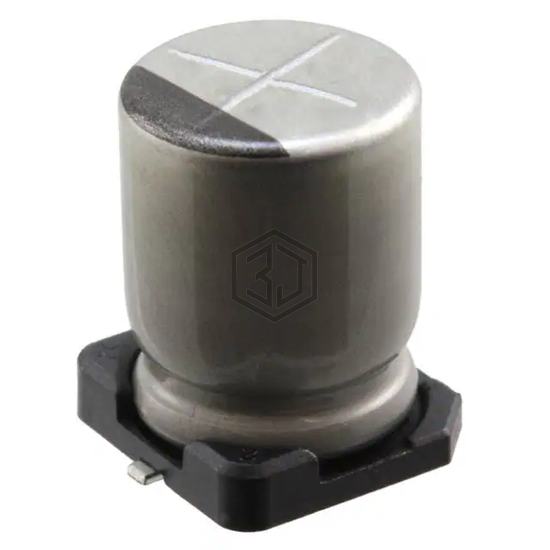

CAP ALUM 10UF 20% 200V SMD
ULH2D100MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 200V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 200 V, package / case Radial, Can - SMD.
In Stock: 5,215
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 45 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUB2D100MNL1GS | Nichicon | CAP ALUM 10UF 20% 200V SMD | 91% | View |
| EMVH350ADA100MF60G | United Chemi-Con | CAP ALUM 10UF 20% 35V SMD | 71% | View |
| CGS035M100D06PE50V00R | Suscon | CAP ALUM 10UF 20% 35V SMD | 68% | View |
| EMVH630ARA100MH63G | Chemi-Con | CAP ALUM 10UF 20% 63V SMD | 67% | View |
| AEH1016100M400R | KYOCERA AVX | ALUMINUM CAP | 58% | View |
| UUB1H100MCL1GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 51% | View |
Submit your RFQ for ULH2D100MNL1GS and get a quote within 24 hours.
