Renesas Electronics America Inc

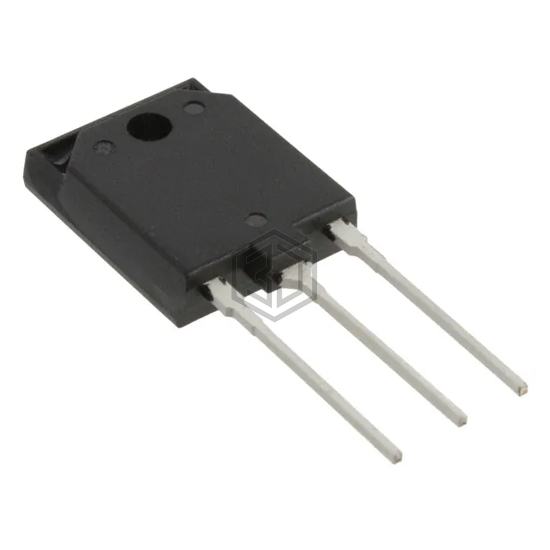

IGBT 600V 45A 40W TO-3PFM
RJP60V0DPM-00#T1 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 45A 40W TO-3PFM. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 45 A.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 45 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 22A |
| Power - Max | 40 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 75 nC |
| Td (on/off) @ 25°C | 45ns/100ns |
| Test Condition | 300V, 22A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-3PFM |
Submit your RFQ for RJP60V0DPM-00#T1 and get a quote within 24 hours.
