Renesas Electronics America Inc
IGBT 600V 80A 260.4W

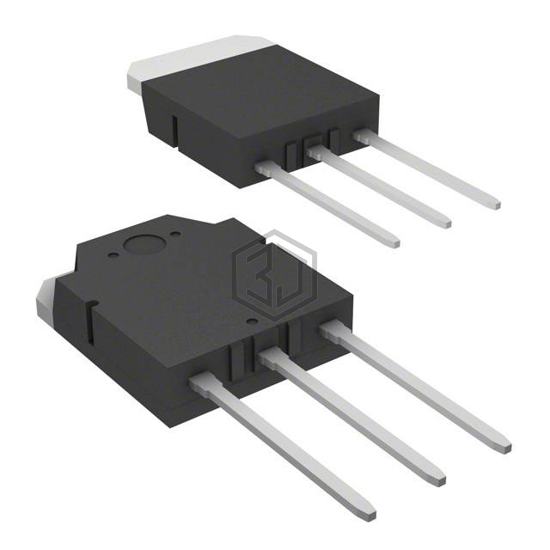

RJP60F5DPK-01#T0 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 80A 260.4W. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 80 A.
In Stock: 114
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 40A |
| Power - Max | 260.4 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 74 nC |
| Td (on/off) @ 25°C | 53ns/90ns |
| Test Condition | 400V, 30A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-3P |
Submit your RFQ for RJP60F5DPK-01#T0 and get a quote within 24 hours.
