Renesas Electronics America Inc
IGBT 600V 45A 122W LDPAK

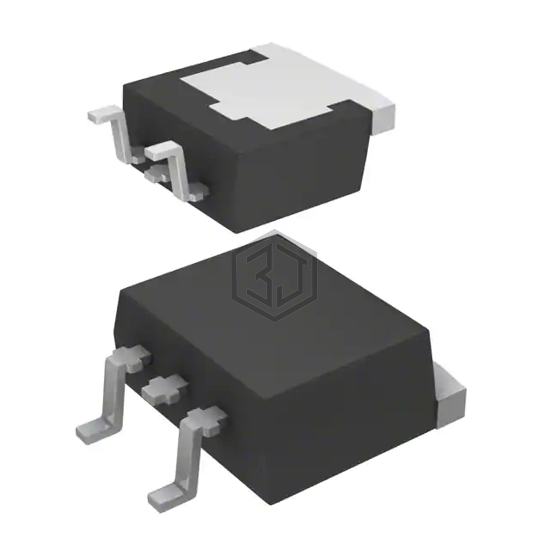

RJP60D0DPE-00#J3 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 45A 122W LDPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-83, current - collector (ic) (max) 45 A.
In Stock: 1,021
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 45 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 22A |
| Power - Max | 122 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 45 nC |
| Td (on/off) @ 25°C | 35ns/90ns |
| Test Condition | 300V, 22A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-83 |
| Supplier Device Package | LDPAK |
Submit your RFQ for RJP60D0DPE-00#J3 and get a quote within 24 hours.
