Renesas Electronics America Inc
IGBT TRENCH 650V 100A TO247A

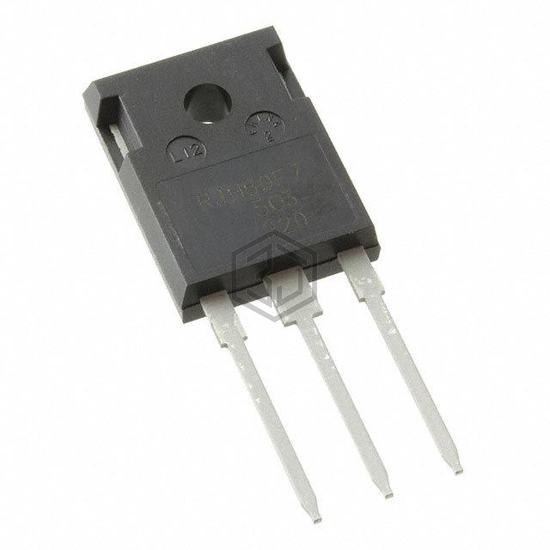

RJH65T14DPQ-A0#T0 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT TRENCH 650V 100A TO247A. Key specifications: mounting type Through Hole, operating temperature 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 100 A.
In Stock: 59
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 100 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 50A |
| Power - Max | 250 W |
| Switching Energy | 1.3mJ (on), 1.2mJ (off) |
| Input Type | Standard |
| Gate Charge | 80 nC |
| Td (on/off) @ 25°C | 38ns/125ns |
| Test Condition | 400V, 50A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 250 ns |
| Operating Temperature | 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247A |
Submit your RFQ for RJH65T14DPQ-A0#T0 and get a quote within 24 hours.
