Renesas Electronics America Inc
IGBT TRENCH 600V 60A TO247A

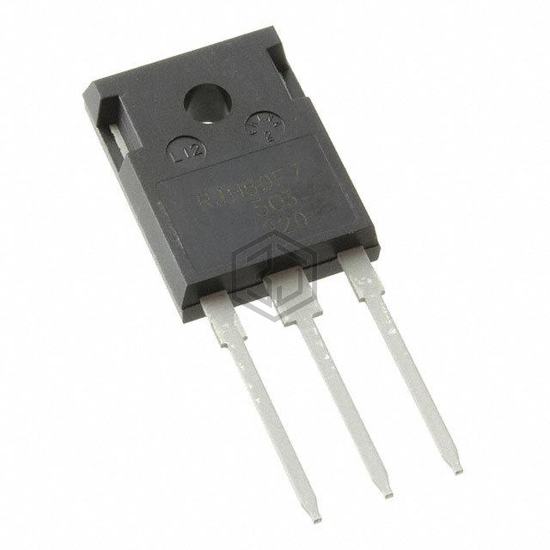

RJH60T04DPQ-A1#T0 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT TRENCH 600V 60A TO247A. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 60 A.
In Stock: 700
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 60 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 30A |
| Power - Max | 208.3 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 87 nC |
| Td (on/off) @ 25°C | 54ns/136ns |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 100 ns |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247A |
Submit your RFQ for RJH60T04DPQ-A1#T0 and get a quote within 24 hours.
