Renesas Electronics America Inc
IGBT 600V 90A 300W TO-247

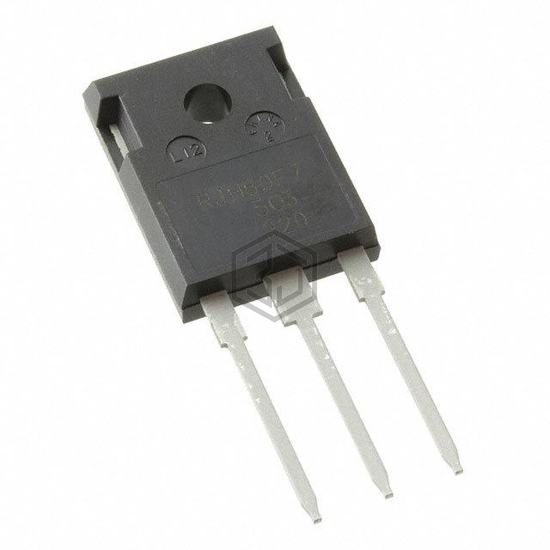

RJH60D7BDPQ-E0#T2 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 600V 90A 300W TO-247. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 90 A.
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 90 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 50A |
| Power - Max | 300 W |
| Switching Energy | 700µJ (on), 1.4mJ (off) |
| Input Type | Standard |
| Gate Charge | 125 nC |
| Td (on/off) @ 25°C | 60ns/180ns |
| Test Condition | 300V, 50A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 25 ns |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
Submit your RFQ for RJH60D7BDPQ-E0#T2 and get a quote within 24 hours.
