Renesas Electronics America Inc

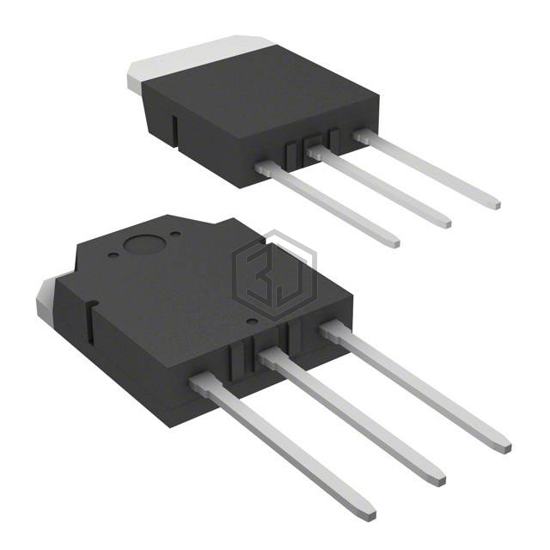

IGBT 1200V 60A 290W TO-3P
RJH1CV6DPK-00#T0 is a Transistors - IGBTs - Single manufactured by Renesas Electronics America Inc. IGBT 1200V 60A 290W TO-3P. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 60 A.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 60 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 30A |
| Power - Max | 290 W |
| Switching Energy | 2.3mJ (on), 1.7mJ (off) |
| Input Type | Standard |
| Gate Charge | 105 nC |
| Td (on/off) @ 25°C | 46ns/125ns |
| Test Condition | 600V, 30A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 180 ns |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-3P |
Submit your RFQ for RJH1CV6DPK-00#T0 and get a quote within 24 hours.
