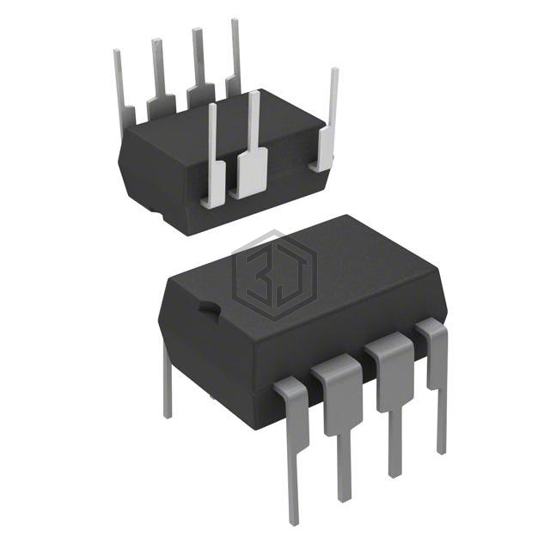

IC OFFLINE SWITCH FLYBACK 8DIP
TOP242P is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), 7 Leads, power (watts) 15 W.
In Stock: 3,102
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 66.5% |
| Frequency - Switching | 66kHz ~ 132kHz |
| Power (Watts) | 15 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-B |
| Mounting Type | Through Hole |
TOP242P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK306P | Power Integrations | IC OFFLINE SWITCH MULT TOP 8DIP | 100% | View |
| TOP242F | Power Integrations | IC OFFLINE SW FLYBACK TO262-7C | 90% | View |
| TOP232Y | Power Integrations | IC OFFLINE SW FLYBACK TO220-7B | 86% | View |
| TOP244PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 83% | View |
| LNK3694P | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 72% | View |
| TOP262EN | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 70% | View |
Submit your RFQ for TOP242P and get a quote within 24 hours.
