IC OFFLINE SWITCH MULT TOP 8DIP

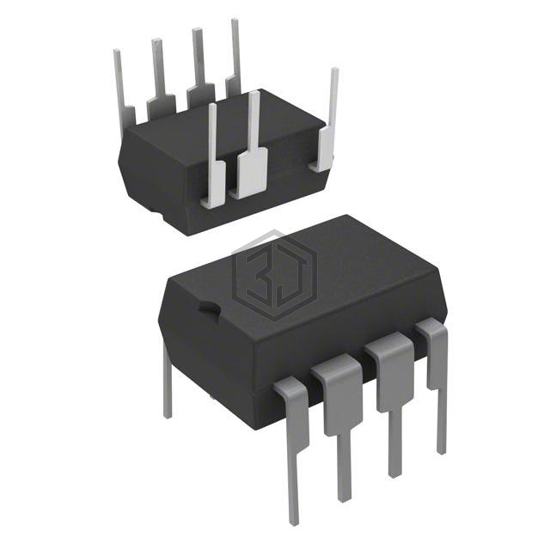

LNK306P is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH MULT TOP 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), 7 Leads, frequency - switching 66kHz.
In Stock: 2,203
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 69% |
| Frequency - Switching | 66kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-B |
| Mounting Type | Through Hole |
LNK306P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TOP262EN | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 100% | View |
| TOP255PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 100% | View |
| TOP257PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 100% | View |
| TOP232Y | Power Integrations | IC OFFLINE SW FLYBACK TO220-7B | 100% | View |
| TOP268VG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 99% | View |
| LNK3694P | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 96% | View |
Submit your RFQ for LNK306P and get a quote within 24 hours.
