IC OFFLINE SWITCH FLYBACK 8DIP

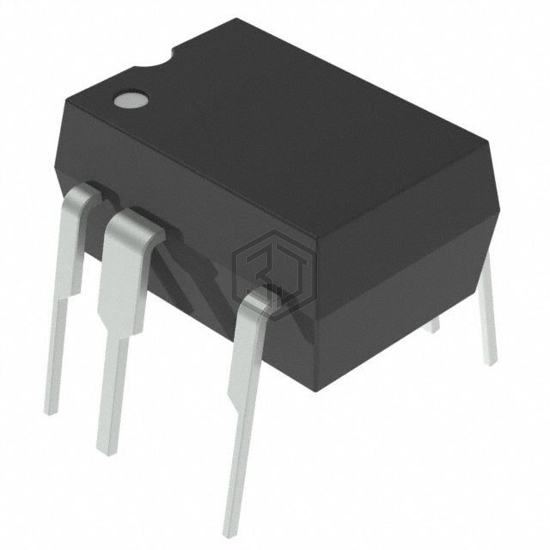

LNK3694P is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), 7 Leads, power (watts) 6 W.
In Stock: 4,115
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 900V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 65% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 6 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-C |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK306P | Power Integrations | IC OFFLINE SWITCH MULT TOP 8DIP | 96% | View |
| TOP242P | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 72% | View |
| TOP262EN | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 67% | View |
| TOP242F | Power Integrations | IC OFFLINE SW FLYBACK TO262-7C | 67% | View |
| TOP258MN | Power Integrations | IC OFFLINE SW FLYBACK 10CSDIP | 67% | View |
| TOP267VGAU | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 67% | View |
Submit your RFQ for LNK3694P and get a quote within 24 hours.
