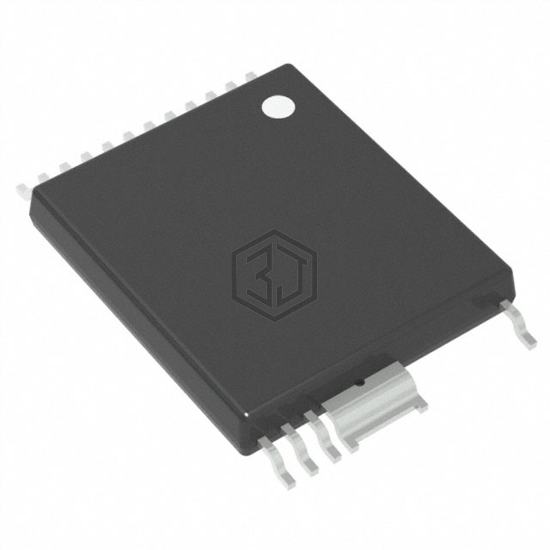

BRIDGESWITCH 1.7 A
BRD1161C-TL is a PMIC - Full, Half-Bridge Drivers manufactured by Power Integrations. BRIDGESWITCH 1.7 A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 50V, package / case 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads.
In Stock: 9,388
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Analog, Logic, PWM |
| Load Type | Capacitive and Resistive |
| Technology | - |
| Rds On (Typ) | 2.95Ohm LS, 2.95Ohm HS |
| Current - Output / Channel | 1.7A |
| Current - Peak Output | - |
| Voltage - Supply | 50V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Mounting Type | Surface Mount |
| Package / Case | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads |
| Supplier Device Package | InSOP-24C |
