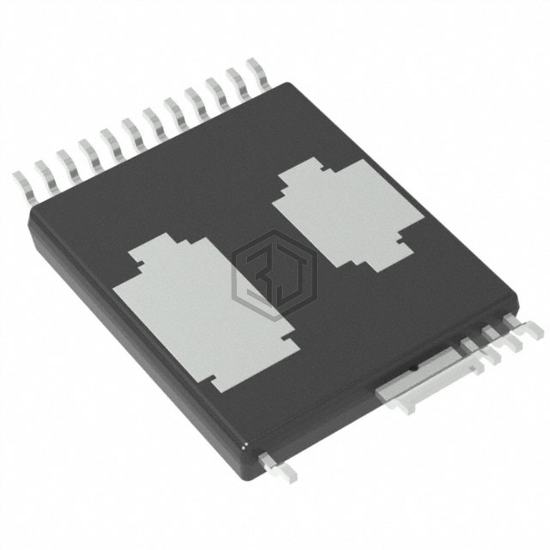

BRIDGESWITCH 1.0 A
BRD1160C-TL is a PMIC - Full, Half-Bridge Drivers manufactured by Power Integrations. BRIDGESWITCH 1.0 A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 50V, package / case 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads.
In Stock: 6,763
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Analog, Logic, PWM |
| Load Type | Capacitive and Resistive |
| Technology | - |
| Rds On (Typ) | 6.84Ohm LS, 6.84Ohm HS |
| Current - Output / Channel | 1A |
| Current - Peak Output | - |
| Voltage - Supply | 50V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Mounting Type | Surface Mount |
| Package / Case | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads |
| Supplier Device Package | InSOP-24C |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BRD1260C-TL | Power Integrations | BRIDGESWITCH 1.0 A | 100% | View |
| MAX22256AATB+ | Analog Devices Inc./Maxim Integrated | 36V H-BRIDGE TRANSFORMER DRIVER | 60% | View |
| MAX22258AUD+ | Analog Devices Inc./Maxim Integrated | 36V H-BRIDGE TRANSFORMER DRIVER | 60% | View |
| LMG3425R050RQZT | Texas Instruments | 600-V 50-M GAN FET WITH INTEGRAT | 50% | View |
| LMG3422R050RQZR | Texas Instruments | 600-V 50-M GAN FET WITH INTEGRAT | 50% | View |
| LMG3422R050RQZT | Texas Instruments | 600-V 50-M GAN FET WITH INTEGRAT | 50% | View |
Submit your RFQ for BRD1160C-TL and get a quote within 24 hours.
