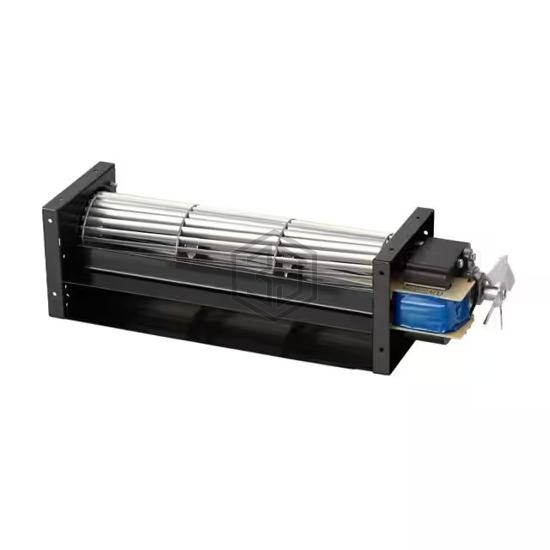

JE-06018A23H-3B - Pelonis Technologies - AC Fans

JE-06018A23H-3B

Pelonis Technologies

280MMLX 98WX90H 230V AC J-SERIES

JE-06018A23H-3B is a AC Fans manufactured by Pelonis Technologies. 280MMLX 98WX90H 230V AC J-SERIES. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 230VAC, size / dimension Rectangular - 280mm L x 90mm H, termination 2 Wire Leads.

In Stock: 32

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated230VAC
Size / DimensionRectangular - 280mm L x 90mm H
Width98.00mm
Air Flow106.0 CFM (2.97m³/min)
Static Pressure0.210 in H2O (52.3 Pa)
Bearing TypeBall
Fan TypeBlower, Cross Flow
FeaturesAuto Restart, Locked Rotor Protection, Polarity Protection
Noise47.0dB(A)
Power (Watts)-
RPM2400 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, cUL, UL
Weight-

Frequently Asked Questions

JE-06018A23H-3B is a AC Fans manufactured by Pelonis Technologies. 280MMLX 98WX90H 230V AC J-SERIES

The operating temperature range of JE-06018A23H-3B is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of JE-06018A23H-3B is 230VAC.

The size of JE-06018A23H-3B is Rectangular - 280mm L x 90mm H.
