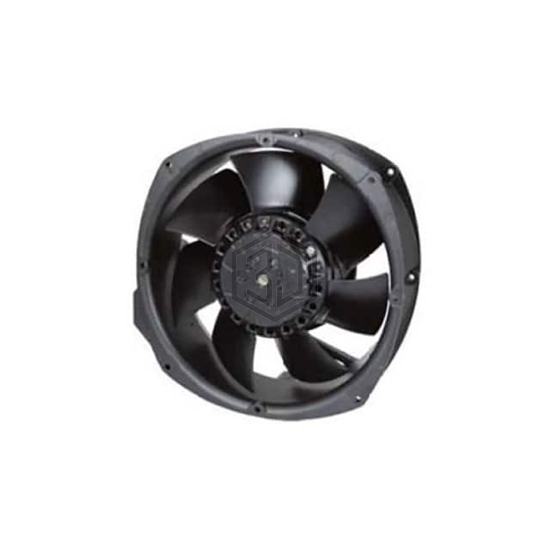

AC FAN, IP69K, 220X220X72MM, 230
OA200AP-22-1TB1869K is a AC Fans manufactured by Orion Fans. AC FAN, IP69K, 220X220X72MM, 230. Key specifications: operating temperature -22 ~ 176°F (-30 ~ 80°C), voltage - rated 230VAC, size / dimension Rectangular/Rounded - 220mm L x 200mm H, termination 2 Terminals.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Rectangular/Rounded - 220mm L x 200mm H |
| Width | 70.00mm |
| Air Flow | 485.0 CFM (13.58m³/min) |
| Static Pressure | 0.930 in H2O (231.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Noise | 68.0dB |
| Power (Watts) | 105W |
| RPM | 3300 RPM |
| Termination | 2 Terminals |
| Ingress Protection | IP69K - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -22 ~ 176°F (-30 ~ 80°C) |
| Approval Agency | CE, cURus, TUV, UR |
| Weight | 4.6 lbs (2.1 kg) |
Submit your RFQ for OA200AP-22-1TB1869K and get a quote within 24 hours.
