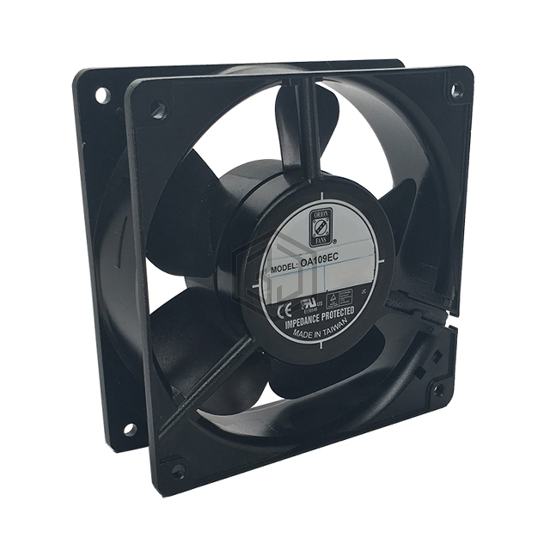

FAN 120X38MM 90-265VAC IP68 ATEX
OA109EC-UR-1TBIP68A is a AC Fans manufactured by Orion Fans. FAN 120X38MM 90-265VAC IP68 ATEX. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 115/230VAC, size / dimension Square - 120mm L x 120mm H, termination 2 Terminals.
In Stock: 76
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115/230VAC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 106.0 CFM (2.97m³/min) |
| Static Pressure | 0.340 in H2O (84.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) |
| Noise | 43.0dB |
| Power (Watts) | 4.90W, 5.20W |
| RPM | 3200 RPM |
| Termination | 2 Terminals |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | ATEX, CE, cURus, UR |
| Weight | 0.64 lb (290.3 g) |
Submit your RFQ for OA109EC-UR-1TBIP68A and get a quote within 24 hours.
