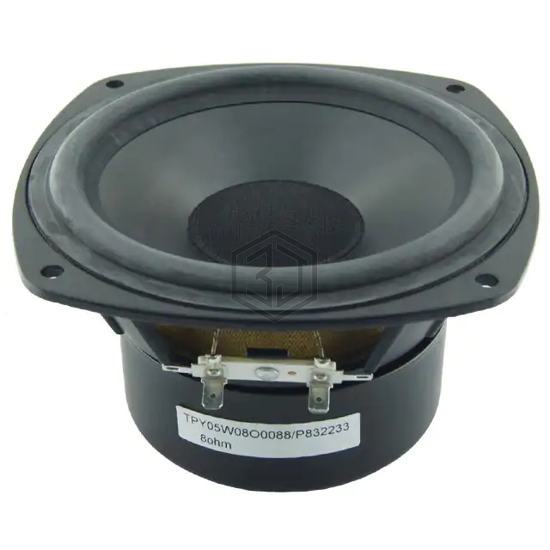

SPEAKER 8OHM 30W TOP PORT 87.5DB
TPY05W08O0088 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 8OHM 30W TOP PORT 87.5DB. Key specifications: size / dimension 5.181" L x 5.181" W (131.60mm x 131.60mm), termination Solder Eyelet(s), power - rated 30 W, frequency range 20 Hz ~ 5 kHz.
In Stock: 5,452
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 20 Hz ~ 5 kHz |
| Frequency - Self Resonant | 85Hz |
| Impedance | 7.51 Ohms |
| Efficiency - dBA | 87.50 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 30 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Polypropylene (PP) |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 5.181" L x 5.181" W (131.60mm x 131.60mm) |
| Height - Seated (Max) | 3.024" (76.80mm) |
