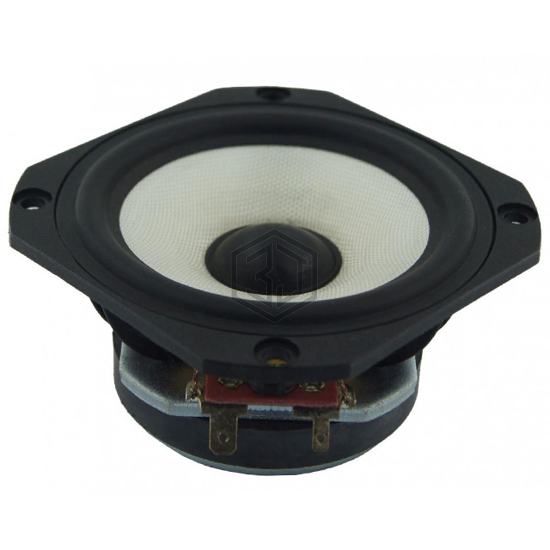

TG9FD10-04 - Peerless by Tymphany - Speakers

TG9FD10-04

Peerless by Tymphany

SPEAKER 4OHM 10W TOP PORT 84DB

TG9FD10-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4OHM 10W TOP PORT 84DB. Key specifications: size / dimension 3.307" L x 3.307" W (84.00mm x 84.00mm), termination Solder Eyelet(s), power - rated 10 W, frequency range 100 Hz ~ 20 kHz.

In Stock: 9,491

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeFull Range
Frequency Range100 Hz ~ 20 kHz
Frequency - Self Resonant113.42Hz
Impedance3.82 Ohms
Efficiency - dBA84.00
Efficiency - Testing1W/1M
Efficiency - TypeHalf Space Sensitivity
Power - Rated10 W
Power - Max-
Port LocationTop
ShapeRound, Square Frame
Material - ConeGlass Fiber Composite
Material - MagnetFerrite
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension3.307" L x 3.307" W (84.00mm x 84.00mm)
Height - Seated (Max)1.703" (43.25mm)

Frequently Asked Questions

TG9FD10-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4OHM 10W TOP PORT 84DB

The size of TG9FD10-04 is 3.307" L x 3.307" W (84.00mm x 84.00mm).

The termination type of TG9FD10-04 is Solder Eyelet(s).

The power rating of TG9FD10-04 is 10 W.

The resistance of TG9FD10-04 is 3.82 Ohms.
