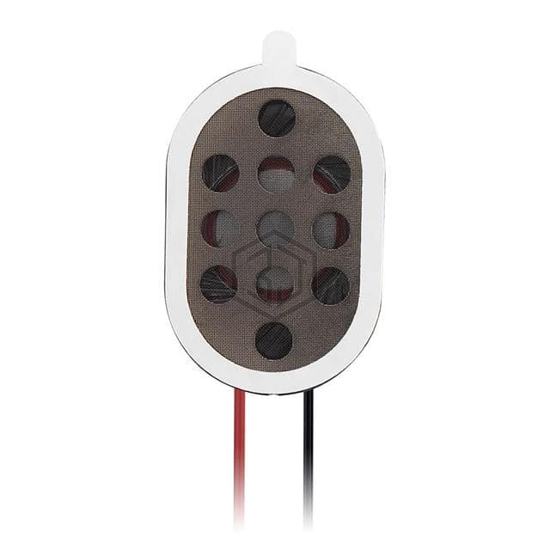

20X30MM MINI 8 OHM SPEAKER
SPKM.2030.8.A is a Speakers manufactured by Taoglas Limited. 20X30MM MINI 8 OHM SPEAKER. Key specifications: size / dimension 1.181" L x 0.787" W (30.00mm x 20.00mm), termination Wire Leads with Connector, power - max 1 W, frequency range 10 Hz ~ 11 kHz.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 10 Hz ~ 11 kHz |
| Frequency - Self Resonant | 900Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 93.00 |
| Efficiency - Testing | 500mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round, Rectangular Frame |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
| Height - Seated (Max) | 0.150" (3.80mm) |
