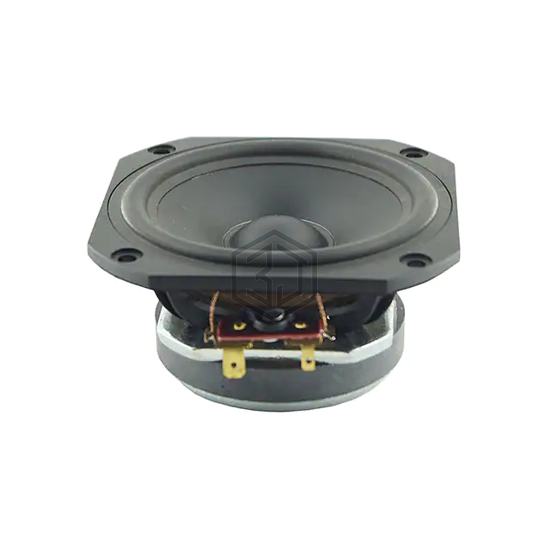

TC9FD18-08 - Peerless by Tymphany - Speakers

TC9FD18-08

Peerless by Tymphany

SPEAKER 8OHM 30W TOP PORT 84.4DB

TC9FD18-08 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 8OHM 30W TOP PORT 84.4DB. Key specifications: size / dimension 3.297" L x 3.297" W (83.75mm x 83.75mm), termination Solder Eyelet(s), power - rated 30 W, frequency range 100 Hz ~ 20 kHz.

In Stock: 926

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeFull Range
Frequency Range100 Hz ~ 20 kHz
Frequency - Self Resonant124.86Hz
Impedance7.75 Ohms
Efficiency - dBA84.40
Efficiency - Testing1W/1M
Efficiency - TypeHalf Space Sensitivity
Power - Rated30 W
Power - Max-
Port LocationTop
ShapeRound, Square Frame
Material - ConePaper
Material - MagnetFerrite
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension3.297" L x 3.297" W (83.75mm x 83.75mm)
Height - Seated (Max)1.695" (43.05mm)

Frequently Asked Questions

TC9FD18-08 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 8OHM 30W TOP PORT 84.4DB

The size of TC9FD18-08 is 3.297" L x 3.297" W (83.75mm x 83.75mm).

The termination type of TC9FD18-08 is Solder Eyelet(s).

The power rating of TC9FD18-08 is 30 W.

The resistance of TC9FD18-08 is 7.75 Ohms.
