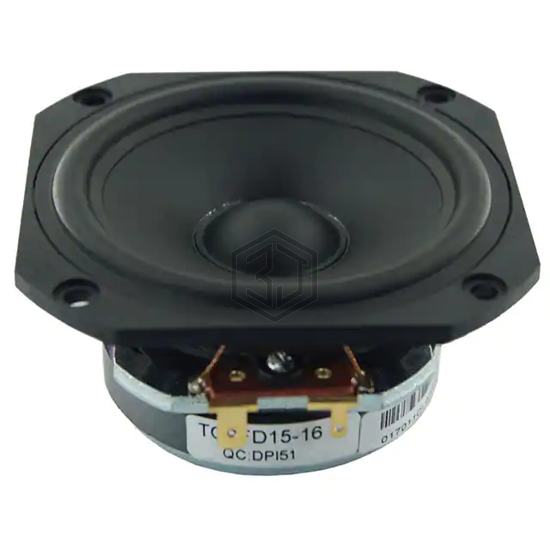

SPEAKR 16OHM 20W TOP PORT 87.8DB
TC9FD15-16 is a Speakers manufactured by Peerless by Tymphany. SPEAKR 16OHM 20W TOP PORT 87.8DB. Key specifications: size / dimension 3.297" L x 3.297" W (83.75mm x 83.75mm), termination Solder Eyelet(s), power - rated 20 W, frequency range 115 Hz ~ 20 kHz.
In Stock: 6,722
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Full Range |
| Frequency Range | 115 Hz ~ 20 kHz |
| Frequency - Self Resonant | 127.25Hz |
| Impedance | 14.51 Ohms |
| Efficiency - dBA | 87.80 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 20 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 3.297" L x 3.297" W (83.75mm x 83.75mm) |
| Height - Seated (Max) | 1.541" (39.15mm) |
Submit your RFQ for TC9FD15-16 and get a quote within 24 hours.
