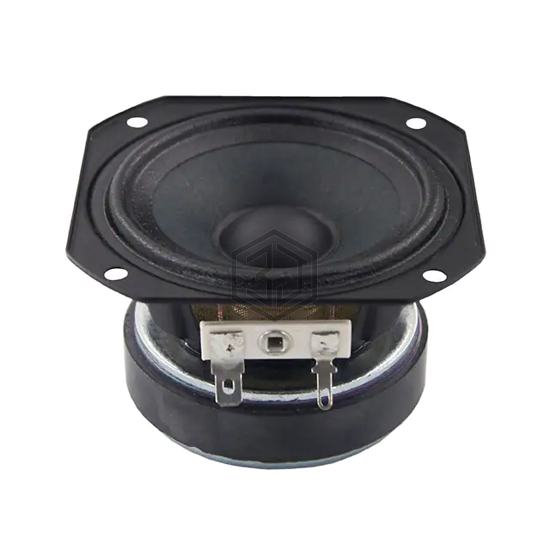

SPEAKER 4 OHM 20W TOP 85.2DB
TC8FD05-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4 OHM 20W TOP 85.2DB. Key specifications: size / dimension 3.201" L x 3.201" W (81.30mm x 81.30mm), termination Solder Eyelet(s), power - rated 20 W, frequency range 20 Hz ~ 10 kHz.
In Stock: 965
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Full Range |
| Frequency Range | 20 Hz ~ 10 kHz |
| Frequency - Self Resonant | 146.8Hz |
| Impedance | 3.34 Ohms |
| Efficiency - dBA | 85.20 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 20 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 3.201" L x 3.201" W (81.30mm x 81.30mm) |
| Height - Seated (Max) | - |
Submit your RFQ for TC8FD05-04 and get a quote within 24 hours.
