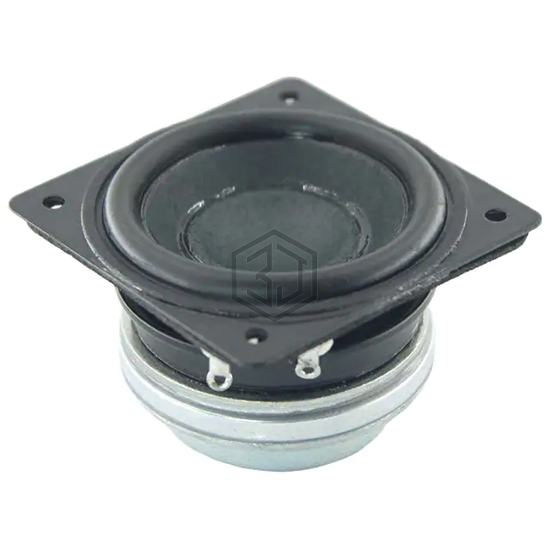

SPEAKER 4OHM 5W TOP PORT 83.6DB
TC5FC07-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4OHM 5W TOP PORT 83.6DB. Key specifications: size / dimension 1.594" L x 1.594" W (40.50mm x 40.50mm), termination Solder Eyelet(s), power - rated 5 W, frequency range 200 Hz ~ 20 kHz.
In Stock: 6,708
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Full Range |
| Frequency Range | 200 Hz ~ 20 kHz |
| Frequency - Self Resonant | 145.74Hz |
| Impedance | 4.41 Ohms |
| Efficiency - dBA | 83.60 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 5 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.594" L x 1.594" W (40.50mm x 40.50mm) |
| Height - Seated (Max) | 1.106" (28.10mm) |
Submit your RFQ for TC5FC07-04 and get a quote within 24 hours.
