SPEAKER 4OHM 5W TOP PORT 80.1DB

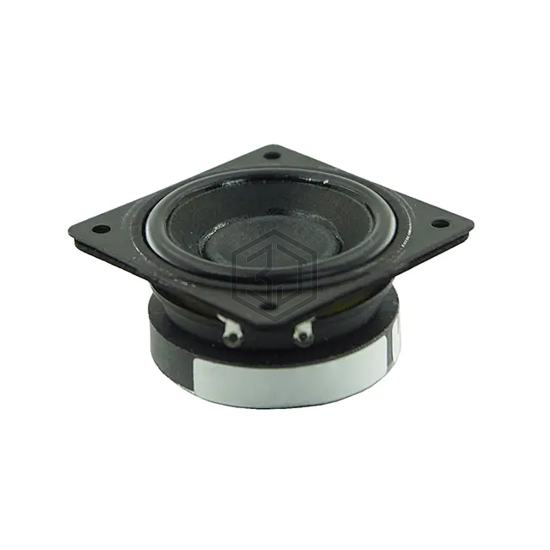

TC5FB00-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4OHM 5W TOP PORT 80.1DB. Key specifications: size / dimension 1.594" L x 1.594" W (40.50mm x 40.50mm), termination Solder Eyelet(s), power - rated 5 W, frequency range 250 Hz ~ 20 kHz.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Full Range |
| Frequency Range | 250 Hz ~ 20 kHz |
| Frequency - Self Resonant | 234.82Hz |
| Impedance | 3.94 Ohms |
| Efficiency - dBA | 80.10 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 5 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.594" L x 1.594" W (40.50mm x 40.50mm) |
| Height - Seated (Max) | 0.850" (21.60mm) |
Submit your RFQ for TC5FB00-04 and get a quote within 24 hours.
