SPEAKER 4OHM 30W TOP PORT 89.5DB

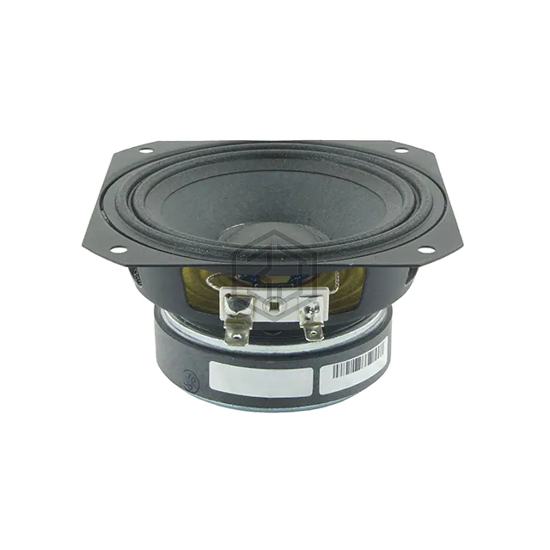

TC10FG00-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4OHM 30W TOP PORT 89.5DB. Key specifications: size / dimension 4.016" L x 4.016" W (102.00mm x 102.00mm), termination Solder Eyelet(s), power - rated 30 W, frequency range 120 Hz ~ 20 kHz.
In Stock: 370
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Full Range |
| Frequency Range | 120 Hz ~ 20 kHz |
| Frequency - Self Resonant | 155.17Hz |
| Impedance | 4.21 Ohms |
| Efficiency - dBA | 89.50 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 30 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
| Height - Seated (Max) | 2.208" (56.08mm) |
Submit your RFQ for TC10FG00-04 and get a quote within 24 hours.
