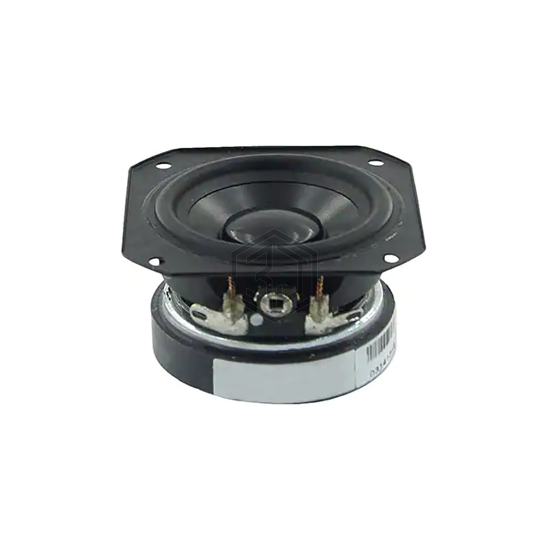

SPEAKER 4OHM 10W TOP PORT 81.1DB
TA6FD00-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4OHM 10W TOP PORT 81.1DB. Key specifications: size / dimension 2.323" L x 2.323" W (59.00mm x 59.00mm), termination Solder Eyelet(s), power - rated 10 W, frequency range 100 Hz ~ 20 kHz.
In Stock: 3,134
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Full Range |
| Frequency Range | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | 146.6Hz |
| Impedance | 3.99 Ohms |
| Efficiency - dBA | 81.10 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 10 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.323" L x 2.323" W (59.00mm x 59.00mm) |
| Height - Seated (Max) | 1.403" (35.63mm) |
