SPEAKER 4OHM 10W TOP PORT 82.4DB

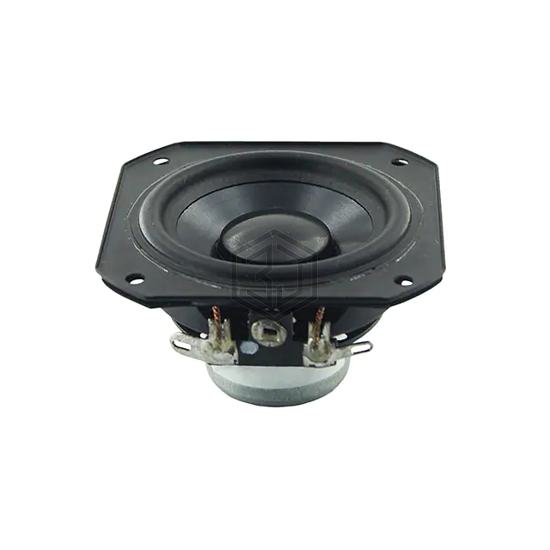

TA6FC00-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4OHM 10W TOP PORT 82.4DB. Key specifications: size / dimension 2.323" L x 2.323" W (59.00mm x 59.00mm), termination Solder Eyelet(s), power - rated 10 W, frequency range 100 Hz ~ 20 kHz.
In Stock: 1,716
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Full Range |
| Frequency Range | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | 177.55Hz |
| Impedance | 4.08 Ohms |
| Efficiency - dBA | 82.40 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 10 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.323" L x 2.323" W (59.00mm x 59.00mm) |
| Height - Seated (Max) | 1.371" (34.83mm) |
