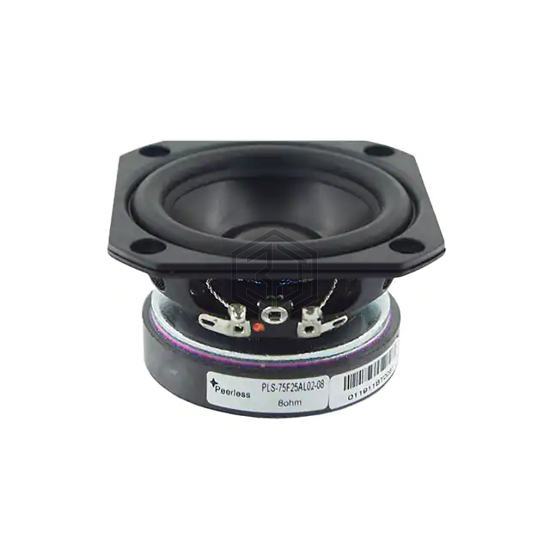

PLS-75F25AL02-08 - Peerless by Tymphany - Speakers

PLS-75F25AL02-08

Peerless by Tymphany

SPEAKER 8OHM 25W TOP PORT 84DB

PLS-75F25AL02-08 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 8OHM 25W TOP PORT 84DB. Key specifications: size / dimension 3.071" L x 3.071" W (78.00mm x 78.00mm), termination Solder Eyelet(s), power - rated 25 W, frequency range 100 Hz ~ 20 kHz.

In Stock: 1,387

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeFull Range
Frequency Range100 Hz ~ 20 kHz
Frequency - Self Resonant104.81Hz
Impedance7.42 Ohms
Efficiency - dBA84.00
Efficiency - Testing1W/1M
Efficiency - TypeHalf Space Sensitivity
Power - Rated25 W
Power - Max-
Port LocationTop
ShapeRound, Square Frame
Material - ConeAluminum (AI)
Material - MagnetFerrite
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension3.071" L x 3.071" W (78.00mm x 78.00mm)
Height - Seated (Max)1.961" (49.80mm)

Frequently Asked Questions

PLS-75F25AL02-08 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 8OHM 25W TOP PORT 84DB

The size of PLS-75F25AL02-08 is 3.071" L x 3.071" W (78.00mm x 78.00mm).

The termination type of PLS-75F25AL02-08 is Solder Eyelet(s).

The power rating of PLS-75F25AL02-08 is 25 W.

The resistance of PLS-75F25AL02-08 is 7.42 Ohms.
