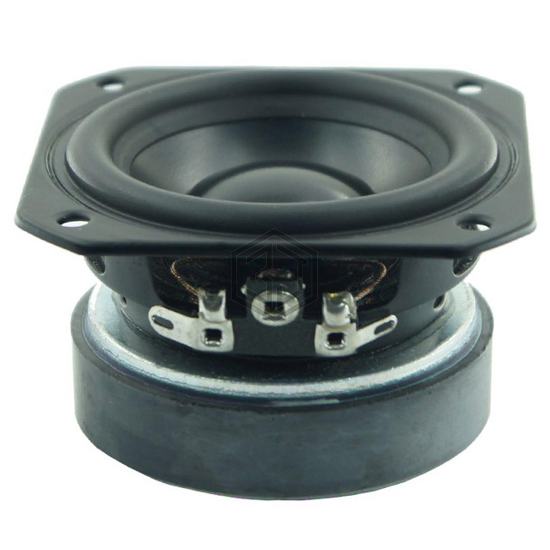

SPEAKER 4OHM 25W TOP PORT 82.2DB
PLS-65F25AL01-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4OHM 25W TOP PORT 82.2DB. Key specifications: size / dimension 2.717" L x 2.717" W (69.00mm x 69.00mm), termination Solder Eyelet(s), power - rated 25 W, frequency range 100 Hz ~ 20 kHz.
In Stock: 9,704
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Full Range |
| Frequency Range | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | 112.07Hz |
| Impedance | 4.26 Ohms |
| Efficiency - dBA | 82.20 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 25 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.717" L x 2.717" W (69.00mm x 69.00mm) |
| Height - Seated (Max) | 1.819" (46.20mm) |
Submit your RFQ for PLS-65F25AL01-04 and get a quote within 24 hours.
