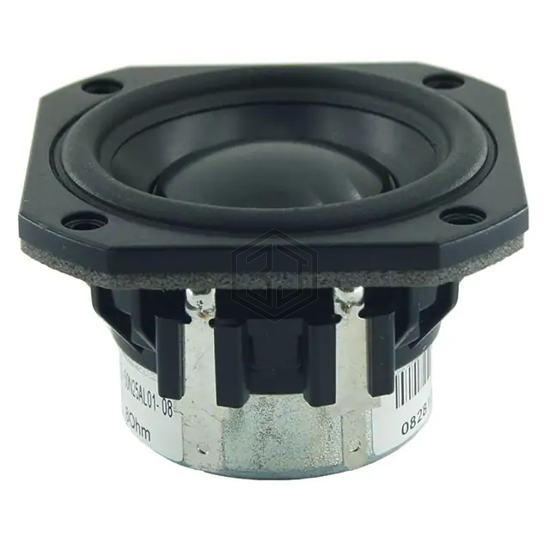

PLS-50N25AL01-08 - Peerless by Tymphany - Speakers

PLS-50N25AL01-08

Peerless by Tymphany

SPEAKER 8OHM 10W TOP PORT 82.8DB

PLS-50N25AL01-08 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 8OHM 10W TOP PORT 82.8DB. Key specifications: size / dimension 2.165" L x 2.165" W (55.00mm x 55.00mm), termination Solder Eyelet(s), power - rated 10 W, frequency range 150 Hz ~ 20 kHz.

In Stock: 7,935

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeFull Range
Frequency Range150 Hz ~ 20 kHz
Frequency - Self Resonant161.02Hz
Impedance6.91 Ohms
Efficiency - dBA82.80
Efficiency - Testing1W/1M
Efficiency - TypeHalf Space Sensitivity
Power - Rated10 W
Power - Max-
Port LocationTop
ShapeRound, Square Frame
Material - ConeAluminum (AI)
Material - MagnetNd
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension2.165" L x 2.165" W (55.00mm x 55.00mm)
Height - Seated (Max)1.378" (35.00mm)

Frequently Asked Questions

PLS-50N25AL01-08 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 8OHM 10W TOP PORT 82.8DB

The size of PLS-50N25AL01-08 is 2.165" L x 2.165" W (55.00mm x 55.00mm).

The termination type of PLS-50N25AL01-08 is Solder Eyelet(s).

The power rating of PLS-50N25AL01-08 is 10 W.

The resistance of PLS-50N25AL01-08 is 6.91 Ohms.
