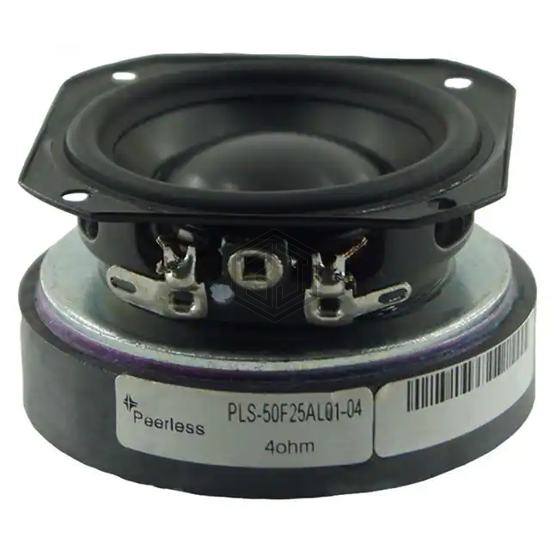

SPEAKER 4OHM 7W TOP PORT 81.6DB
PLS-50F25AL01-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4OHM 7W TOP PORT 81.6DB. Key specifications: size / dimension 2.244" L x 2.244" W (57.00mm x 57.00mm), termination Solder Eyelet(s), power - rated 7 W, frequency range 150 Hz ~ 20 kHz.
In Stock: 1,337
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Full Range |
| Frequency Range | 150 Hz ~ 20 kHz |
| Frequency - Self Resonant | 171.46Hz |
| Impedance | 4.42 Ohms |
| Efficiency - dBA | 81.60 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 7 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.244" L x 2.244" W (57.00mm x 57.00mm) |
| Height - Seated (Max) | 1.469" (37.30mm) |
Submit your RFQ for PLS-50F25AL01-04 and get a quote within 24 hours.
