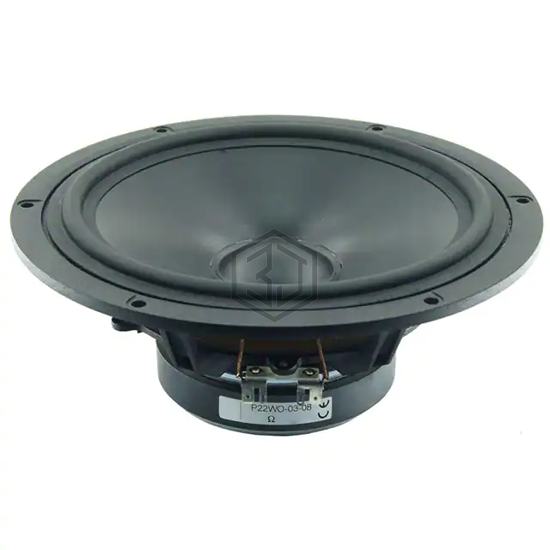

P22WO03-08 - Peerless by Tymphany - Speakers

P22WO03-08

Peerless by Tymphany

SPEAKER 8OHM 80W TOP PORT 89.4DB

P22WO03-08 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 8OHM 80W TOP PORT 89.4DB. Key specifications: size / dimension 8.858" Dia (225.00mm), termination Solder Eyelet(s), power - rated 80 W, frequency range 40 Hz ~ 7 kHz.

In Stock: 7,582

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeWoofer
Frequency Range40 Hz ~ 7 kHz
Frequency - Self Resonant46.7Hz
Impedance6.5 Ohms
Efficiency - dBA89.40
Efficiency - Testing1W/1M
Efficiency - TypeHalf Space Sensitivity
Power - Rated80 W
Power - Max-
Port LocationTop
ShapeRound
Material - ConePolypropylene (PP)
Material - MagnetFerrite
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension8.858" Dia (225.00mm)
Height - Seated (Max)3.610" (91.70mm)

Frequently Asked Questions

P22WO03-08 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 8OHM 80W TOP PORT 89.4DB

The size of P22WO03-08 is 8.858" Dia (225.00mm).

The termination type of P22WO03-08 is Solder Eyelet(s).

The power rating of P22WO03-08 is 80 W.

The resistance of P22WO03-08 is 6.5 Ohms.
