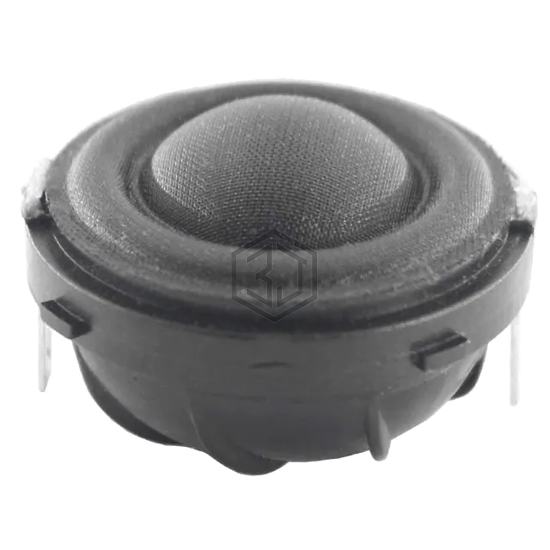

TWEETER 4OHM 80W TOP PORT 87.8DB
OX20SC02-04 is a Speakers manufactured by Peerless by Tymphany. TWEETER 4OHM 80W TOP PORT 87.8DB. Key specifications: size / dimension 1.354" Dia (34.40mm), termination Solder Eyelet(s), power - rated 80 W, frequency range 2.5 kHz ~ 20 kHz.
In Stock: 3,821
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Tweeter |
| Frequency Range | 2.5 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1084.63Hz |
| Impedance | 3.44 Ohms |
| Efficiency - dBA | 87.80 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 80 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Cloth |
| Material - Magnet | Nd |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.354" Dia (34.40mm) |
| Height - Seated (Max) | 0.909" (23.10mm) |
Submit your RFQ for OX20SC02-04 and get a quote within 24 hours.
