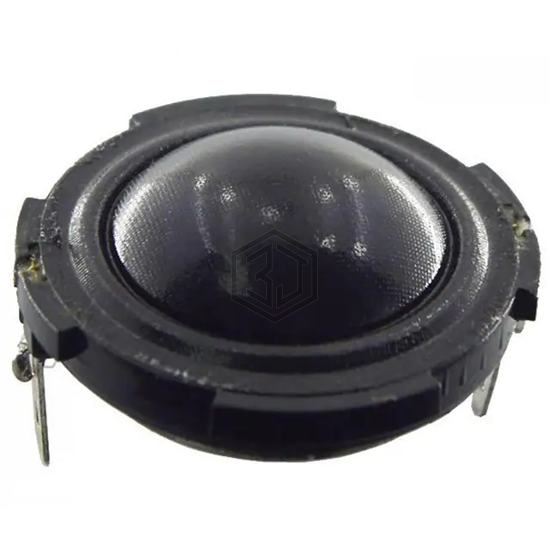

OC25SC65-04 - Peerless by Tymphany - Speakers

OC25SC65-04

Peerless by Tymphany

TWEETER 4OHM 25W TOP PORT 89.2DB

OC25SC65-04 is a Speakers manufactured by Peerless by Tymphany. TWEETER 4OHM 25W TOP PORT 89.2DB. Key specifications: size / dimension 1.280" Dia (32.50mm), termination Solder Eyelet(s), power - rated 25 W, frequency range 1.3 kHz ~ 20 kHz.

In Stock: 870

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeTweeter
Frequency Range1.3 kHz ~ 20 kHz
Frequency - Self Resonant1382.22Hz
Impedance3.2 Ohms
Efficiency - dBA89.20
Efficiency - Testing1W/1M
Efficiency - TypeHalf Space Sensitivity
Power - Rated25 W
Power - Max-
Port LocationTop
ShapeRound
Material - ConeCloth
Material - MagnetNd
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension1.280" Dia (32.50mm)
Height - Seated (Max)1.004" (25.50mm)

Frequently Asked Questions

OC25SC65-04 is a Speakers manufactured by Peerless by Tymphany. TWEETER 4OHM 25W TOP PORT 89.2DB

The size of OC25SC65-04 is 1.280" Dia (32.50mm).

The termination type of OC25SC65-04 is Solder Eyelet(s).

The power rating of OC25SC65-04 is 25 W.

The resistance of OC25SC65-04 is 3.2 Ohms.
