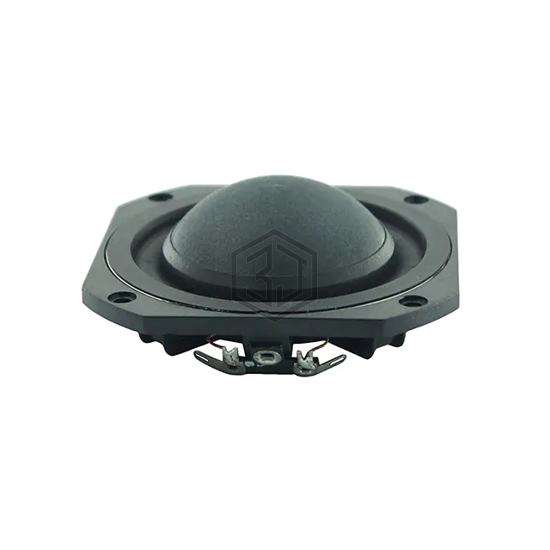

SPEAKER 4OHM 15W TOP PORT 84.1DB
GBS-85N25PR03-04 is a Speakers manufactured by Peerless by Tymphany. SPEAKER 4OHM 15W TOP PORT 84.1DB. Key specifications: size / dimension 3.297" L x 3.297" W (83.75mm x 83.75mm), termination Solder Eyelet(s), power - rated 15 W, frequency range 40 Hz ~ 3 kHz.
In Stock: 271
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Woofer |
| Frequency Range | 40 Hz ~ 3 kHz |
| Frequency - Self Resonant | 113.45Hz |
| Impedance | 3.19 Ohms |
| Efficiency - dBA | 82.80 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 15 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 3.297" L x 3.297" W (83.75mm x 83.75mm) |
| Height - Seated (Max) | 1.317" (33.46mm) |
