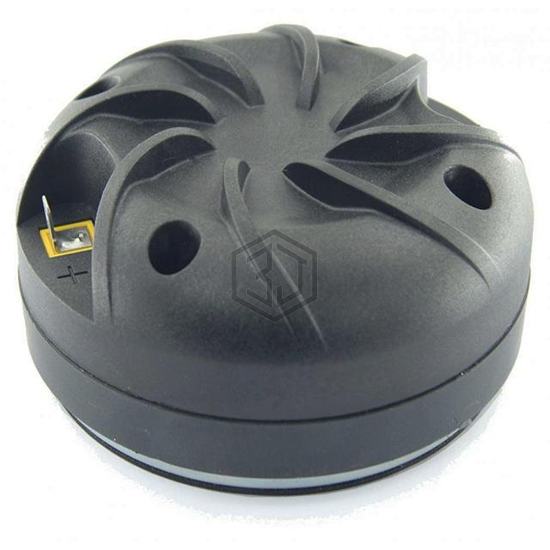

TWEETR 8OHM 60W TOP PORT 104.5DB
DFM-2544R00-08 is a Speakers manufactured by Peerless by Tymphany. TWEETR 8OHM 60W TOP PORT 104.5DB. Key specifications: size / dimension 4.528" Dia (115.00mm), termination Solder Eyelet(s), power - rated 60 W, frequency range 1.5 kHz ~ 15 kHz.
In Stock: 1,060
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Compression |
| Frequency Range | 1.5 kHz ~ 15 kHz |
| Frequency - Self Resonant | 784.22Hz |
| Impedance | 6.59 Ohms |
| Efficiency - dBA | 104.50 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 60 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Titanium, Treated |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 4.528" Dia (115.00mm) |
| Height - Seated (Max) | 2.319" (58.90mm) |
