TWEETER 6OHM 30W TOP PORT 87.4DB

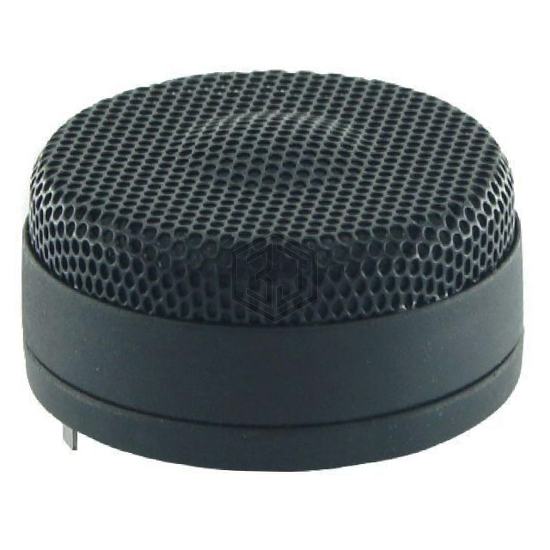

D26NC05-06 is a Speakers manufactured by Peerless by Tymphany. TWEETER 6OHM 30W TOP PORT 87.4DB. Key specifications: size / dimension 1.772" Dia (45.00mm), termination Solder Eyelet(s), power - rated 30 W, frequency range 1.3 kHz ~ 20 kHz.
In Stock: 9,955
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Tweeter |
| Frequency Range | 1.3 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1579.09Hz |
| Impedance | 5.99 Ohms |
| Efficiency - dBA | 87.40 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 30 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.772" Dia (45.00mm) |
| Height - Seated (Max) | 0.881" (22.37mm) |
Submit your RFQ for D26NC05-06 and get a quote within 24 hours.
