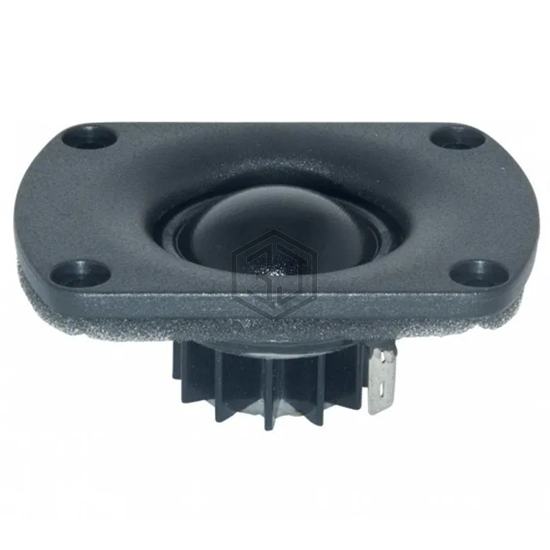

TWEETR 4OHM 100W TOP PORT 89.6DB
BC25SC55-04 is a Speakers manufactured by Peerless by Tymphany. TWEETR 4OHM 100W TOP PORT 89.6DB. Key specifications: size / dimension 2.756" L x 2.756" W (70.00mm x 70.00mm), termination Solder Eyelet(s), power - rated 100 W, frequency range 1.4 kHz ~ 20 kHz.
In Stock: 5,546
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Tweeter |
| Frequency Range | 1.4 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1401.51Hz |
| Impedance | 3.36 Ohms |
| Efficiency - dBA | 89.60 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Power - Rated | 100 W |
| Power - Max | - |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.756" L x 2.756" W (70.00mm x 70.00mm) |
| Height - Seated (Max) | 1.163" (29.55mm) |
Submit your RFQ for BC25SC55-04 and get a quote within 24 hours.
