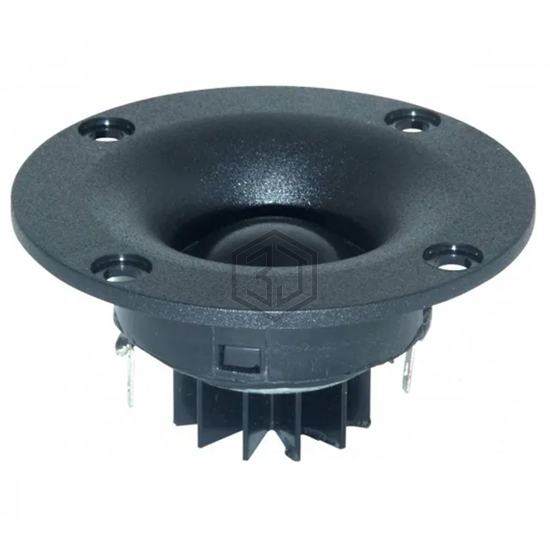

BC25SC06-04 - Peerless by Tymphany - Speakers

BC25SC06-04

Peerless by Tymphany

TWEETER 4OHM 25W TOP PORT 92.4DB

BC25SC06-04 is a Speakers manufactured by Peerless by Tymphany. TWEETER 4OHM 25W TOP PORT 92.4DB. Key specifications: size / dimension 2.756" Dia (70.00mm), termination Solder Eyelet(s), power - rated 25 W, frequency range 1.3 kHz ~ 20 kHz.

In Stock: 8,942

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeTweeter
Frequency Range1.3 kHz ~ 20 kHz
Frequency - Self Resonant1394.91Hz
Impedance3.37 Ohms
Efficiency - dBA92.40
Efficiency - Testing1W/1M
Efficiency - TypeHalf Space Sensitivity
Power - Rated25 W
Power - Max-
Port LocationTop
ShapeRound
Material - ConeCloth
Material - MagnetNd-Fe-B
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension2.756" Dia (70.00mm)
Height - Seated (Max)1.358" (34.50mm)

Frequently Asked Questions

BC25SC06-04 is a Speakers manufactured by Peerless by Tymphany. TWEETER 4OHM 25W TOP PORT 92.4DB

The size of BC25SC06-04 is 2.756" Dia (70.00mm).

The termination type of BC25SC06-04 is Solder Eyelet(s).

The power rating of BC25SC06-04 is 25 W.

The resistance of BC25SC06-04 is 3.37 Ohms.
