Panasonic Electronic Components
CAP ALUM 100UF 20% 10V SMD

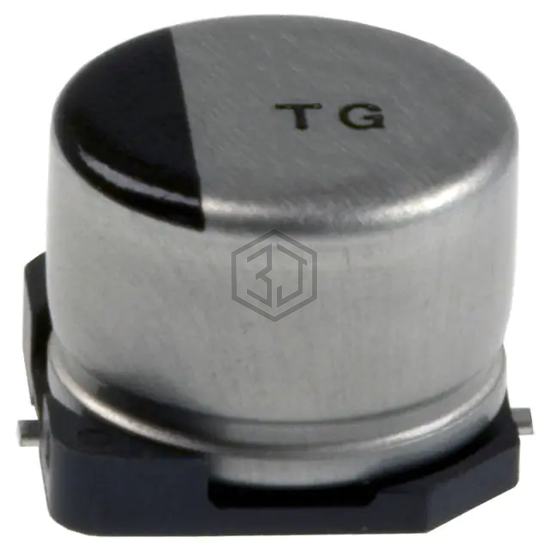

EEV-TG1A101P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 2,087
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 1Ohm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 100 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-TG1A101P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUA101M1ATR-0806S | Surge | CAP ALUM 10V POLAR | 95% | View |
| EMVH100ADA101MH63G | United Chemi-Con | CAP ALUM 100UF 20% 10V SMD | 87% | View |
| EMVH100ADA101MF80G | United Chemi-Con | CAP ALUM 100UF 20% 10V SMD | 87% | View |
| EMVH100ARA101MF80G | Chemi-Con | CAP ALUM 100UF 20% 10V SMD | 87% | View |
| VUA101M1CTR-0806S | Surge | CAP ALUM 16V POLAR | 81% | View |
| RTK-35V101MH11GU-RRD | Elna America | CAP ALUM 100UF 20% 35V SMD | 74% | View |
Submit your RFQ for EEV-TG1A101P and get a quote within 24 hours.
